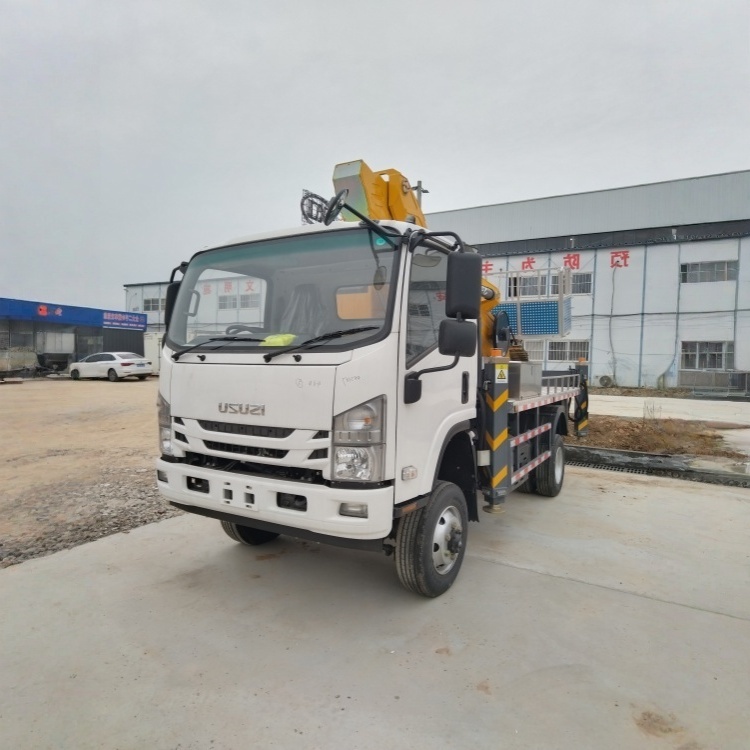

Chassis
|
Chassis brand |
ISUZU |
|
Overall dimensions (mm) |
5995×2000×2840 |
|
|
Gross weight (kg) |
4495 |
|
|
Driver's seat |
2-3 |
|
|
Drive type |
4*2 |
|
|
Fuel type |
Diesel |
|
|
Engine Brand |
Isuzu |
|
|
Power (kW/hp) |
118/160 |
|
|
Emission standards |
Euro 6 |
|
|
Wheelbase (mm) |
3300 / 3815 |
|
|
Tire specifications |
7.50R16 / 215/75R17.5 |
|
|
Color |
Customer's request |
|
|
Upper body configuration
|
Platform Working Height （m） |
31 |
|

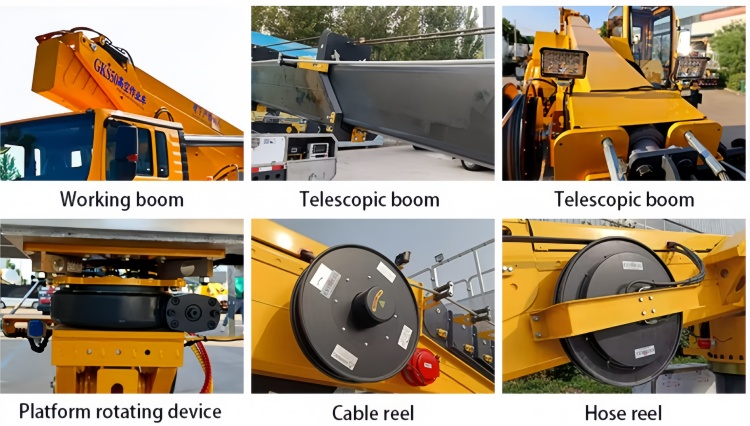

Boom type |
6-7 section fully telescopic boom |
|
|
Outrigger |
4 pcs, Lateral span of outrigger 5400mm |
|
|

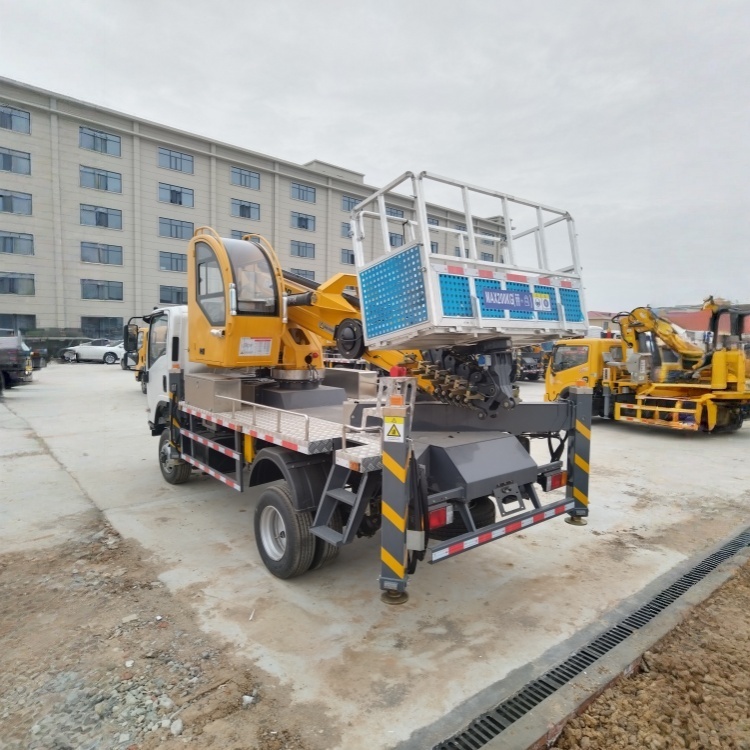

Bucket |
1600×700×1000mm(LWH), 200kg load |
|
|
Slewing device |
Two-way 360° continuous slewing, 360°slewing basket |
|
|
Operating system |
Up and down operation both on ground and in bucket, Wireless remote control + platform operation + manual 3 groups of operating |
|
|
Emergency device |
Yes |
Working heights at elevation:
8 meters, 10 meters, 12 meters, 14 meters, 16 meters, 18 meters, 20 meters, 22 meters, 24 meters, 25 meters, 26 meters, 27 meters, 28 meters, 30 meters, 32 meters, 34 meters, 36 meters, 38 meters
Key structural components such as telescopic booms, turntables and vehicle frames are all welded from low-alloy high-strength steel, featuring high strength and light weight, and fully verified by various tests.
