Fresh produce transportation, pharmaceutical cold chain, vaccine transfer, seafood cold chain
Multi-temperature zone distribution, short-distance distribution, long-distance cold chain
Fruit and vegetable preservation, frozen food, chilled meat transportation
High load capacity, high efficiency and timeliness, green and low carbon
|
Truck Specification |
|
|
Product name |

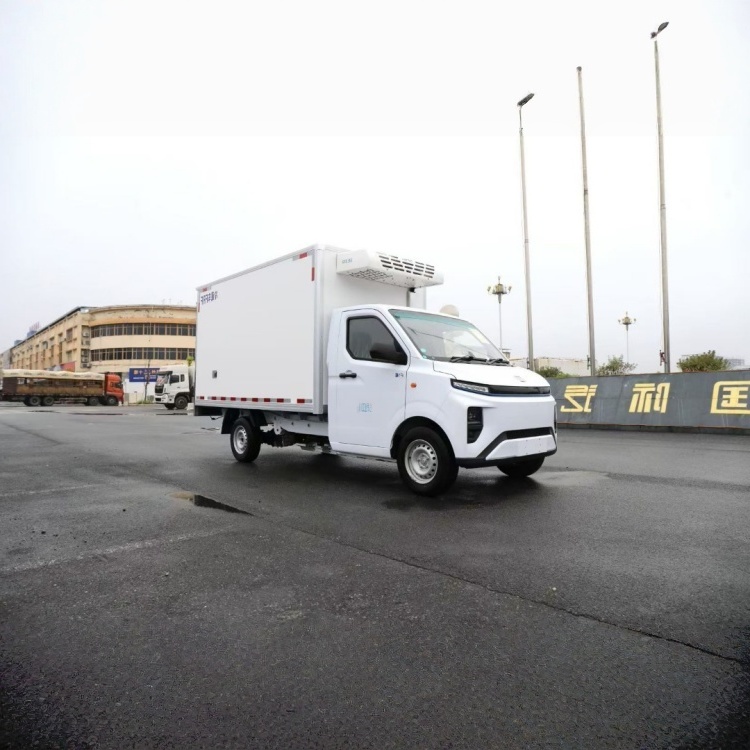

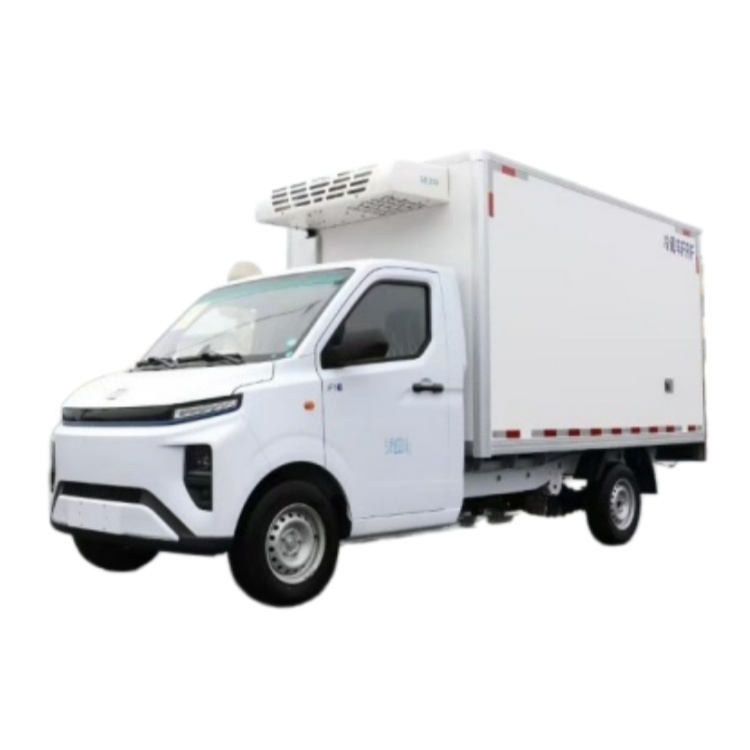

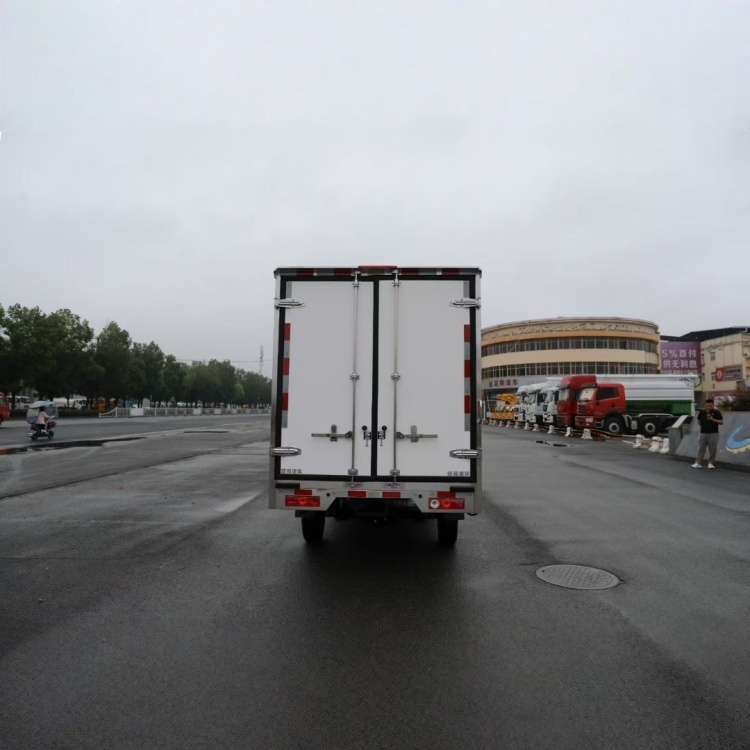

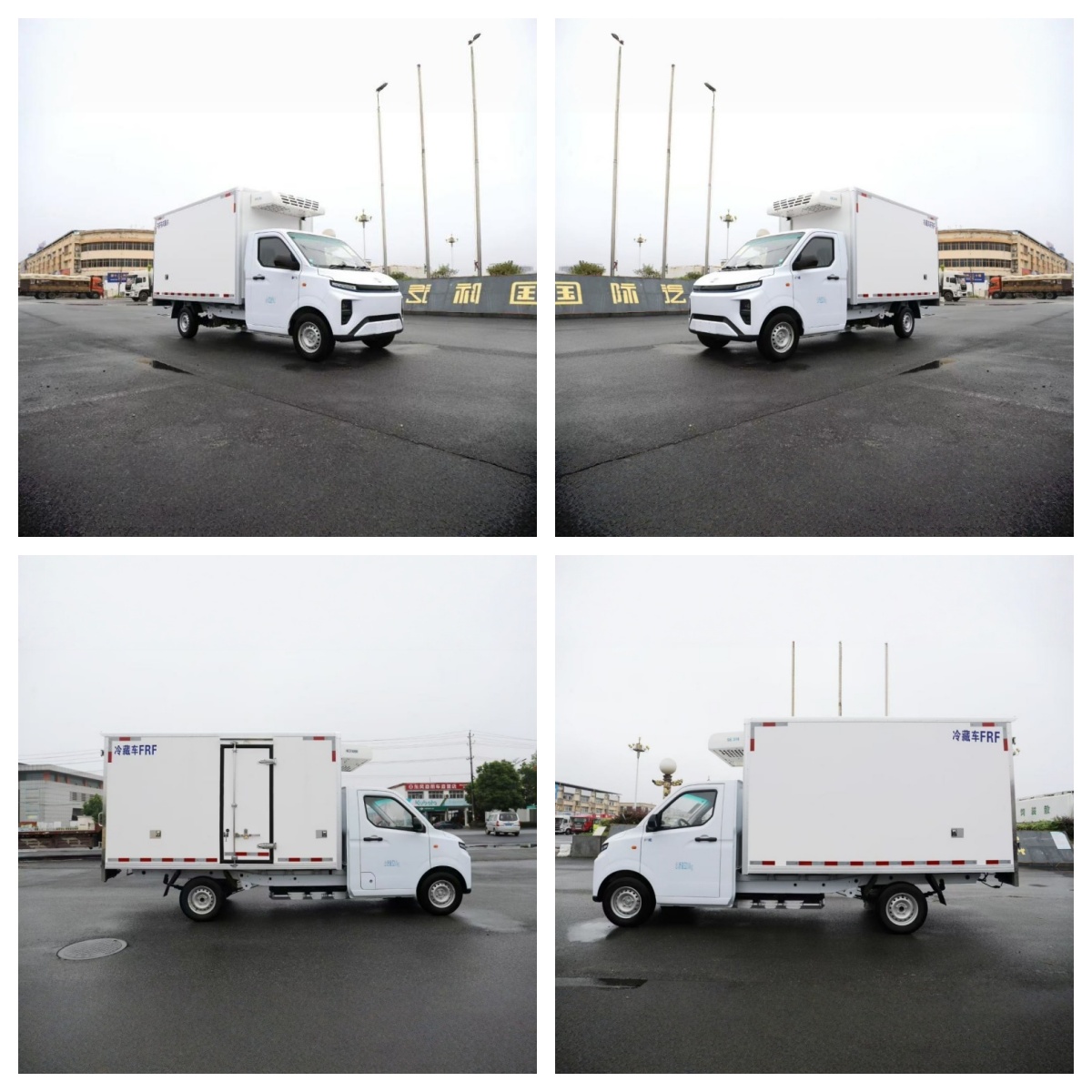

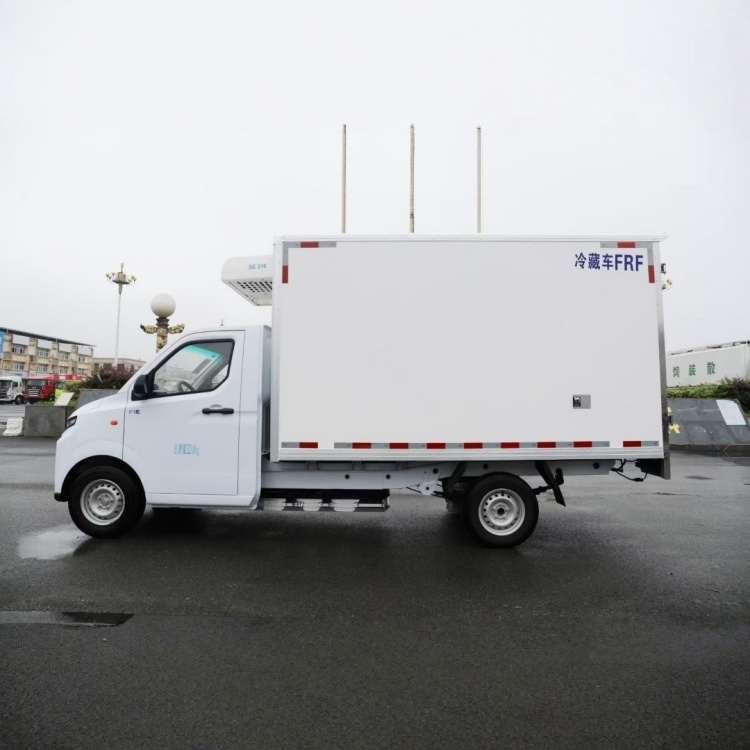

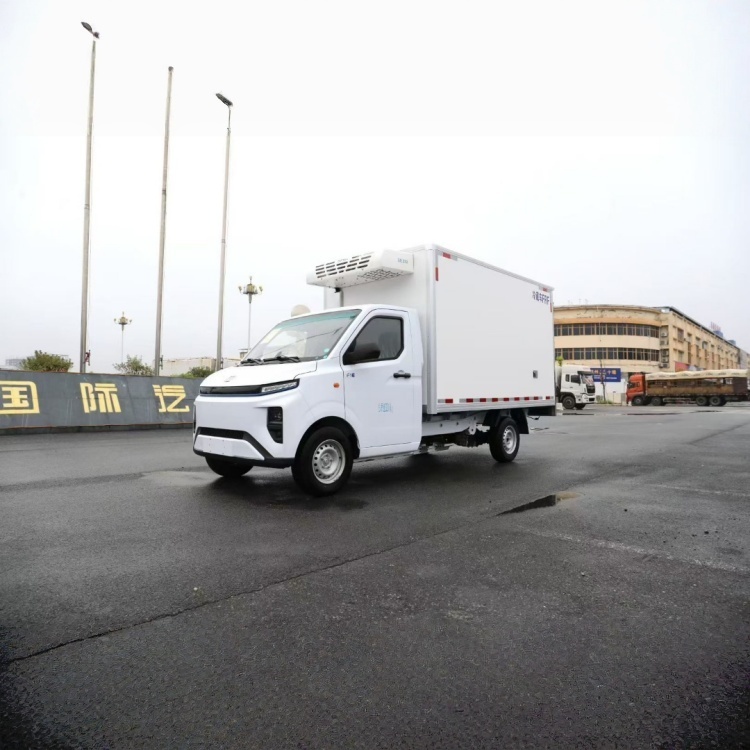

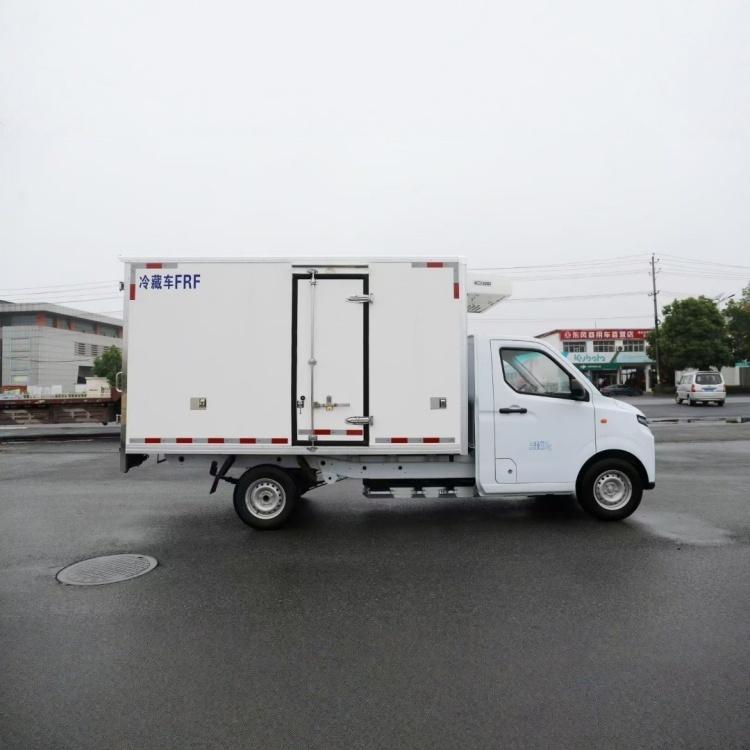

Refrigerator truck |
|
Overall dimension(mm) |
5235.5380.5195x1730.1780x2485.2145.2195.2490.2620.2700 |
|
Drive type |
4*2 Left hand driving |
|
Gross weight(Kg) |
3200 |
|
Payload(Kg) |
1260 |
|
Curb weight(Kg) |
1810 |
|
Cab seats |
2 |
|
Wheelbase(mm) |
3360 |
|
Max speed(Km/h) |
100 |
|
Chassis |
|
|
Chassis model |
Geely F1 |
|
Cab |
Single row, luxurious interiors and seats with power steering. Air condition is optional. |
|
Emission standard |
Euro 3 |
|
Fuel type |
electric |
|
Tyre specification |
185R14LT 8PR |
|
Engine model |
Remote Zhixin Brand Permanent Magnet Synchronous Motor |
|
Power(hp) |
98 |
|
Transmission |
1forward gear,1 reverse gear |
|
Exhaust(ml) |
mL |
|
Upper-Body specification |
|
|
Material of van box |
In the middle of Polyurethenefoam, Inner and coating is glass fiber |
|
Thickness of van box (mm) |
80mm Polyurethene foam |
|
Model of Refrigeration unit |
China |
|
Van box dimension(mm) |
2980.3160x1605.1665x1520.1175.1225.1520.1650.1730 |
|
Capacity of van (m³) |
9m³ |
|
Mini temperature in van (ºC) |
-18(suitable for transfer food ) |
|
Feature and Application |
|
|

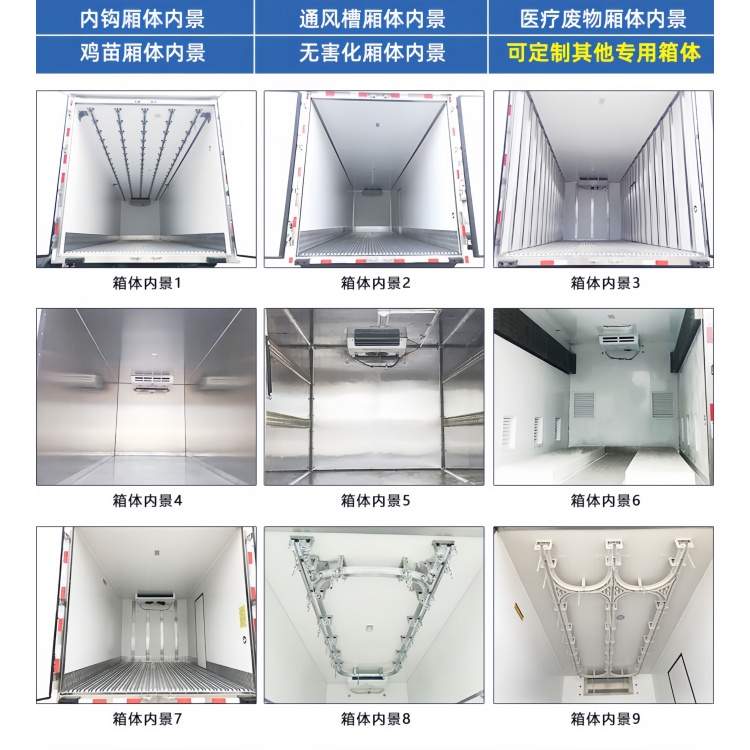

The refrigerator truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, Polyurethane insulation van, refrigeration unit and temperature recorder. It is commonly used to transport the frozen food, dairy products, vegetable and fruit and vaccine medicine etc. For the special requirements of trucks,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots etc. parts can be chosen and installed. |
|
Factory direct sales, professional customization
With over 15 years of experience in exporting special-purpose trucks
