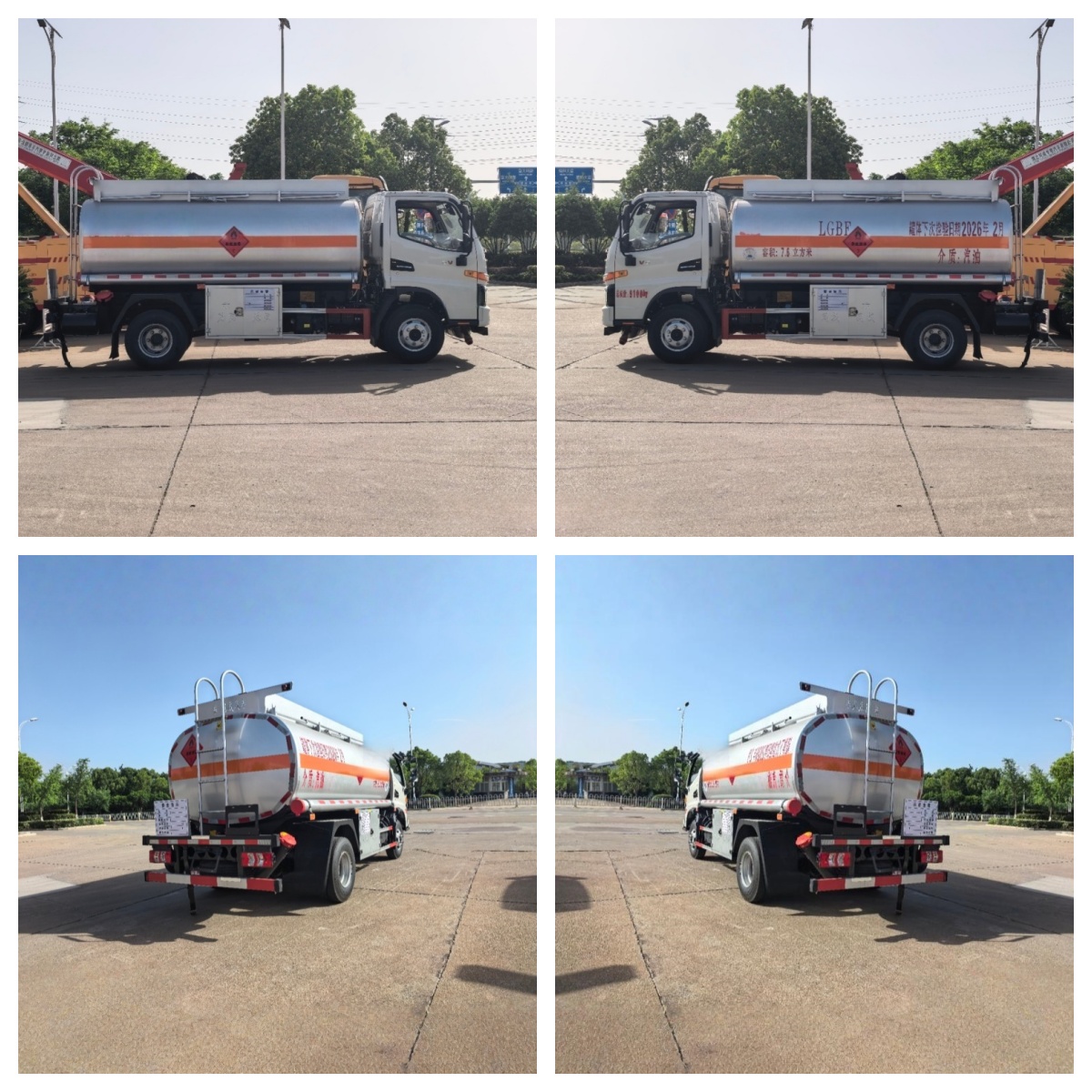

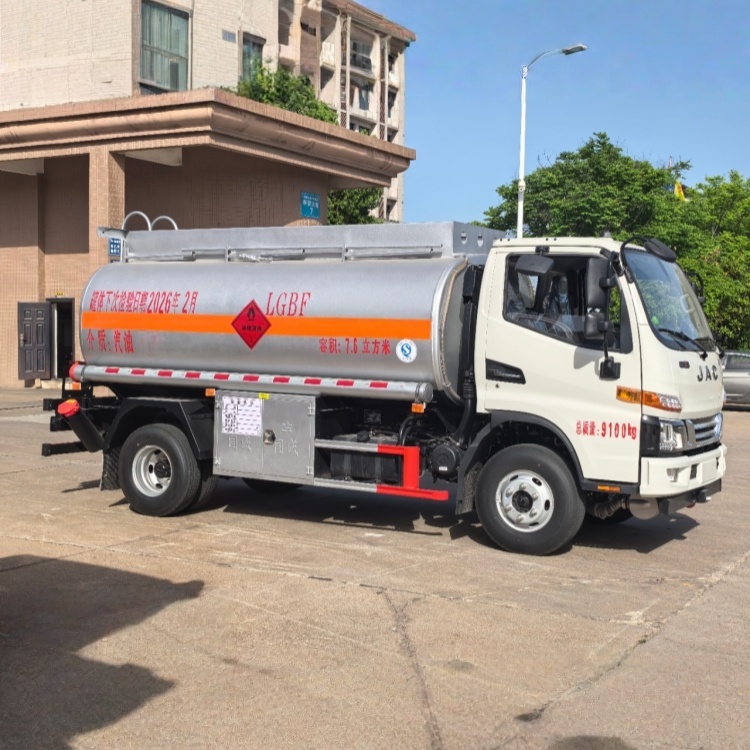

Fuel Tank Truck – Gasoline and Diesel Transport Solution
Tank trucks: also known as mobile fuel trucks, computer tax control fuel trucks, tank trucks, loading trucks, tank trucks, edible oil tank trucks, mainly used for the transportation and storage of petroleum derivatives (gasoline, diesel, crude oil, lubricating oil, coal tar and other oil products).According to different uses and use environments, there are various refueling or conveying functions, including oil suction, pumping, and various oil separation and oil dispensing functions. The special part of the oil truck is composed of tank, power take-off, drive shaft, gear oil pump, pipe network system and other components. The pipeline system is composed of oil pump, three-way four-position ball valve, two-way ball valve, filter screen, pipeline, etc.
Operational Role and Core Configuration Designed for fuel distributors, municipal fleets, and downstream petroleum operators, this fuel tank truck supports the secure transport of gasoline and diesel in urban and regional delivery routes. The vehicle structure combines a corrosion-resistant cylindrical tank, reinforced baffles, and a sealed manhole to stabilize liquid movement during transit. Its PTO-driven oil pump provides steady suction and discharge performance, ensuring precise volume control when refueling equipment, machinery, or retail stations. The truck is equipped with a multi-valve pipeline layout that simplifies switching between loading and unloading modes, reducing operational errors. This model is widely used in commercial filling tasks, construction fueling logistics, and service-station replenishment, offering stable output even under frequent stop-and-go conditions. Embedded safety functions—including grounding cable, anti-static connectors, and fire-retardant piping—enhance compliance with fuel distribution standards.
Technical Features and Fuel Handling System The pumping system is engineered for high-viscosity liquid compatibility and continuous duty cycles, supporting diverse fleet requirements managed by a professional tanker truck dealer. Its gear pump integrates a quick-response check valve and fine filtration for cleaner outlet flow, extending the service life of station-side dispensing equipment. The tank wagon truck configuration includes separate chambers for multi-grade fuel delivery, allowing operators to reduce route mileage by consolidating shipments. Welded tank seams receive pressure testing to ensure structural integrity, while the chassis platform provides optimized load distribution for long-distance transport. The integrated gauge, flow meter, and emergency shutoff valve provide operational visibility and incident prevention during refueling. This model’s standardized connection points allow easy adaptation to mobile service stations, roadside operations, and depot loading terminals.
Use Environments and Value for Fuel Logistics For operators handling regional energy distribution, this vehicle delivers consistent performance across refineries, bulk-oil depots, and customer sites requiring on-spot refueling. The sealed gas tank for truck assembly protects fuel quality, minimizing vapor loss when working in hot climates or high-traffic industrial areas. Its pump-back feature permits fuel recovery during maintenance operations, lowering wastage. Legacy fleets upgrading from an old tanker truck benefit from improved maneuverability, lighter tank construction, and higher payload efficiency, supporting greater daily delivery capacity. The truck’s ergonomic control layout shortens training time for new drivers, while its robust frame withstands repeated loading cycles. This model fits fuel contractors, equipment-rental firms, and mixed-fleet operators seeking a practical solution for reliable fuel distribution across varied terrains and customer profiles.
Product Advantages
Reinforced Tank Structure for Liquid Stability The tank is engineered with longitudinal and transverse baffles that minimize liquid surge, maintaining smoother driving dynamics on uneven roads. This structural approach reduces drivetrain wear and improves driver control during emergency maneuvers. The diamond-shaped rear frame enhances rear-impact resistance while preventing deformation during frequent loading cycles. With precision welding and pressure-tested seams, the tank exhibits long-term durability exceeding typical service expectations found in entry-level tank truck models. Its multi-chamber design supports simultaneous transport of different fuel grades, giving operators flexibility in route planning and resource allocation.
Integrated Pumping and Control System A modular pumping station allows quick maintenance and component replacement without dismantling the entire system. The heavy-duty pump couples directly with the PTO, ensuring continuous torque transfer even at low engine speeds. The valve system includes a three-way ball valve, emergency cut-off valve, and fine mesh filters, forming a resilient fuel flow chain that maintains consistent performance under varying pressures. This integration approach shortens unloading time, boosts operational efficiency, and reduces downtime for fleet operators who work with professional tanker truck dealer supply channels.
User-Centric Handling and Safety Enhancements Operators benefit from an intuitive control layout, clearly marked piping, and consolidated switch positions that minimize operational error. The grounding reel and anti-static setup protect against ignition risks during fuel transfer, while the flame-resistant gasket system withstands thermal fluctuations. Side storage lockers keep hoses organized and accessible, improving workflow. Additional enhancements—such as anti-skid steps, rear ladder, and spill-containment guard—optimize user interaction, making the truck more efficient and safer to handle in busy refueling environments where old tanker truck designs commonly fall short.
Use Scenarios
Fuel Distributors Serving Retail Stations Fuel distributors responsible for replenishing community-level gasoline stations rely on a maneuverable tank truck to navigate narrow city roads while maintaining stable tank pressure. Drivers operate within tight delivery windows, requiring fast hose deployment and controlled discharge volumes. The meter-integrated pumping system ensures each retail station receives exact quantities, reducing reconciliation disputes and optimizing inventory turnover. Its sealed tank design prevents vapor escape even when operating in heat-intensive regions, maintaining product quality and regulatory compliance.
Construction Equipment Refueling by Field Engineers Field engineers managing excavators, loaders, and generators need mobile fuel support that delivers diesel efficiently to multiple equipment clusters across job sites. A tank wagon truck equipped with flexible hose routing allows operators to refuel machinery parked in challenging orientations. The reinforced chassis handles unpaved ground conditions, while the high-flow pump speeds up turnaround time, keeping critical equipment running with minimal downtime. Safety valves and anti-static protection ensure secure operation near high-dust environments.
Municipal Fleet Fueling by Logistics Supervisors Municipal logistics supervisors overseeing bus fleets, sanitation vehicles, and emergency service units require a dependable gas tank for truck system to maintain consistent daily operations. This model supports repeated stop-and-refuel cycles, reducing service interruptions for public fleets. Its spill-control structure ensures compliant fueling in government maintenance yards, while modern safety configurations offer a clear upgrade over legacy old tanker truck models still found in some outdated municipal fleets.
Vehicle parameters
General
Car brands
Liwei
Chassis brand
JAC
Overall dimensions (mm)
5850×2100×2750
Grossweight (kg)
9100
Ratedpayload(kg)
5070
Curbweight(kg)
3835
Chassis parameters
Taxi
Driver's seat
3
Drive type
4*2
Engine
Fuel type
Diesel
Engine model
YCF25160-66A
Engine Brand
Yuchai
Power (kW/hp)
116/160
Emission standards
Euro 3/4/5
Chassis
Wheelbase (mm)
3365
Tire specifications
7.50R16LT 16PR
Oil tank structural parameters
Storage tank volume（m³）
7.6
Tank thickness
5mm
Oil pump
Single tank pump with overflow valve 76-40
Medium tank
Gasoline
About Us
Our organization specializes in the engineering and export of commercial-grade fuel transportation vehicles tailored for gasoline and diesel distribution networks. With a technical team experienced in chassis integration, tank fabrication, and pumping system design, we support clients across energy logistics, municipal operations, construction refueling, and regional fuel contracting. Our production facilities apply strict welding standards, pressure testing, and material certification processes to ensure each vehicle meets safety and performance requirements for liquid-fuel transport. We collaborate with international distributors, fleet managers, and equipment-rental companies, helping them configure tank capacities, pump specifications, multivalve pipelines, and operational accessories suited to their daily workloads. Our service model integrates pre-shipment inspection, documentation support, and technical guidance to ensure smooth deployment in diverse regulatory environments. With a commitment to stable supply capability and long-term customer support, we provide dependable solutions for operators seeking durable and efficient fuel-transport vehicles. Strengthen your fleet performance—request detailed configuration support now!
FAQ
What tank capacities are available for this model? Capacities range from small urban-delivery volumes to larger regional-supply configurations, depending on chassis and tank layout.
Does the pumping system support both suction and discharge? Yes. The integrated gear pump enables dual-mode operation for loading fuel from depots or unloading to customer equipment and storage tanks.
What safety protections are included during fueling operations? The truck features grounding cables, anti-static connectors, emergency shutoff valves, and flame-resistant seals to maintain operational safety.
How long is the typical production and delivery timeline? Standard configurations are usually completed within 25–35 days, depending on tank capacity and accessory requirements.
Is the truck compatible with multiple fuel types? It supports gasoline and diesel, with optional multi-chamber designs for delivering different grades on the same route.
