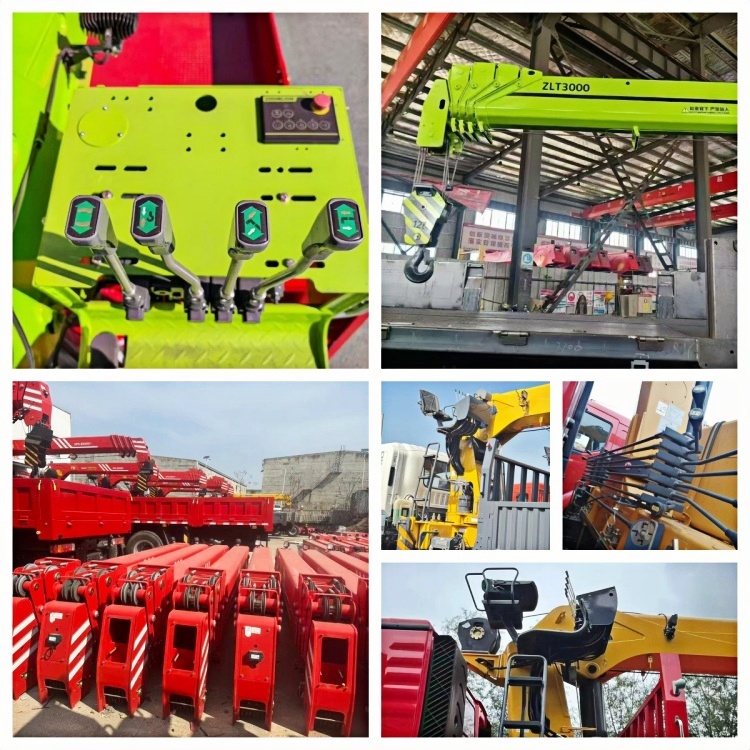

A transport truck integrating a truck-mounted crane and a chassis.It consists of components such as a lifting arm, a turntable, a frame, and outriggers.The mechanical actions of the truck-mounted crane are realized through the movements of mechanisms including luffing, telescoping, slewing, and hoisting.Lifting operations are achieved by combining different actions.
https//www.cnmadetruck.com

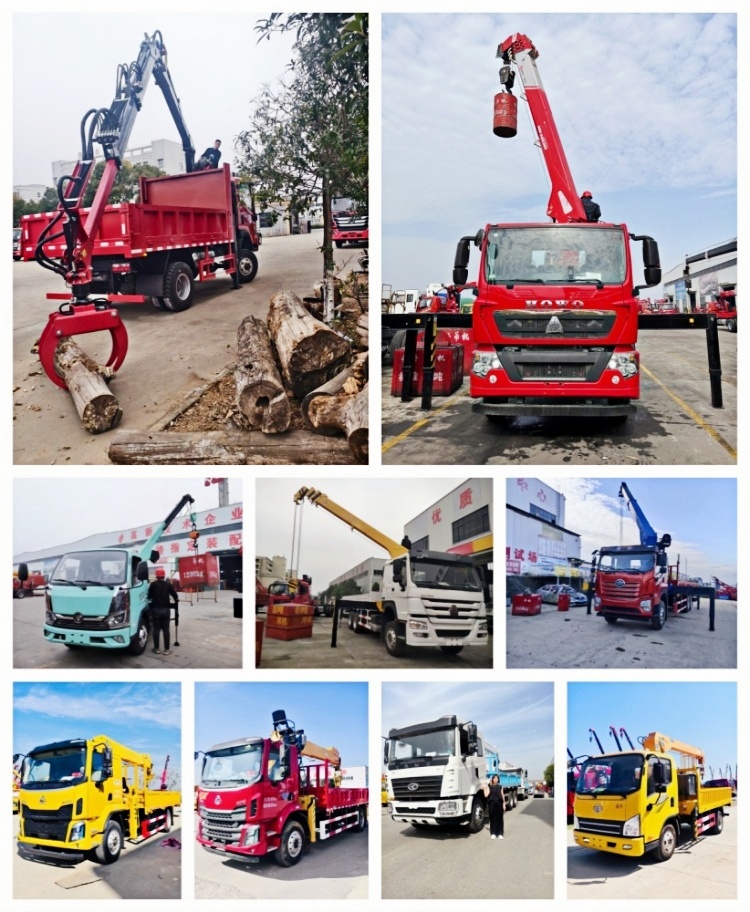

The truck-mounted crane can operate on both the left and right sides, rotate forward and reverse 360 degrees, and also rotate in all directions.There are 2-ton, 3.2-ton, 4-ton, 5-ton, 6.3-ton, 8-ton, 10-ton, 12-ton, 16-ton, 18-ton,20-ton, 25-ton, 30-ton, 80-ton and 140-ton cranes available for selection. You can choose a straight-arm or knuckle-boom crane.
|
Vehicle technical parameters |
|
|
Product Name |
truck crane |
|
Truck brands |
FOTON |
|
Fuel type |
diesel |
|
Total weight(Kg) |
4495 |
|
Crane weight(T) |
4 |
|
Lifting height (m) |
9 |
|
maximum arm length (m) |
7 |
|
rated power |
107KW |
|
gearbox |
5gear |
|
Front/rear axle |
3.5T/6T |
|
wheelbase |
3360mm |
|
Number of tires |
6 |
Widely applicable to municipal construction, coal mine engineering, landscaping, as well as the hoisting and transportation of infrastructure materials and other equipment.
High-quality production, reliable quality, long service life and fast working speed
Truck-mounted cranes can be equipped with various grabbing and auxiliary attachments, such as timber grabs, hanging baskets, brick clamps, and drilling tools, enabling multi-scenario operations.
