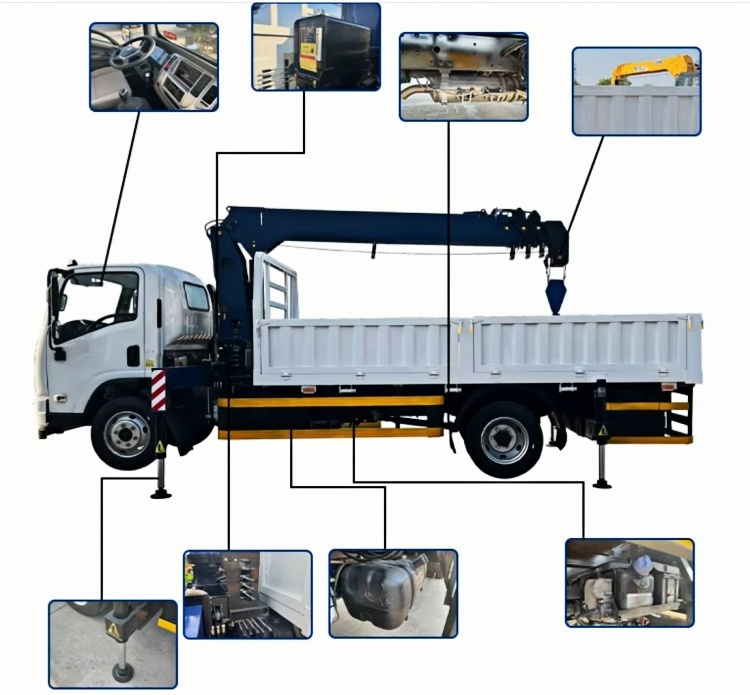

The truck-mounted crane can be operated left and right, rotate 360 degrees forward and backward, and rotate in all directions. Crane models of 2 tons, 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, 18 tons, 20 tons, 25 tons, 30 tons, 80 tons and 140 tons are available. Straight-arm or folded-arm cranes can be selected.
|
Vehicle technical parameters |
|
|
Product Name |
vehicle-mounted crane |
|
Total Weight (kg) |
25000 |
|
Kerb weight (Kg) |
17100 |
|
Suitable crane (kg) |
12000 |
|
Lifting height (m) |
21.1-22 |
|
Spinner |
360° |
|
Maximum allowed personnel |
2 |
|
Overall size (mm) |
12000×2550×3850 |
|
Cargo box dimensions (mm) |
8500×2450×550 |
|
Working radius (m) |
18.8 |
|
Operation Mode |
Manual/Remote Control |
|
Chassis Technical Parameters |
|
|
Brand Name |
DFL |
|
Fuel type |
Diesel |
|
Number of axes |
3 |
|
Number of tires |
10 |
|
Brake |
Air brake |
|
Engine power (kW) |
199 |
|
Gearbox |
9gear |
|
Wheelbase (mm) |
4750+1350 |
|
Tire size |
11.00R20 |
Widely applicable to hoisting and transportation of municipal construction, coal mine projects, landscaping, infrastructure materials and other equipment
Reliable production quality, long service life and fast operating speed

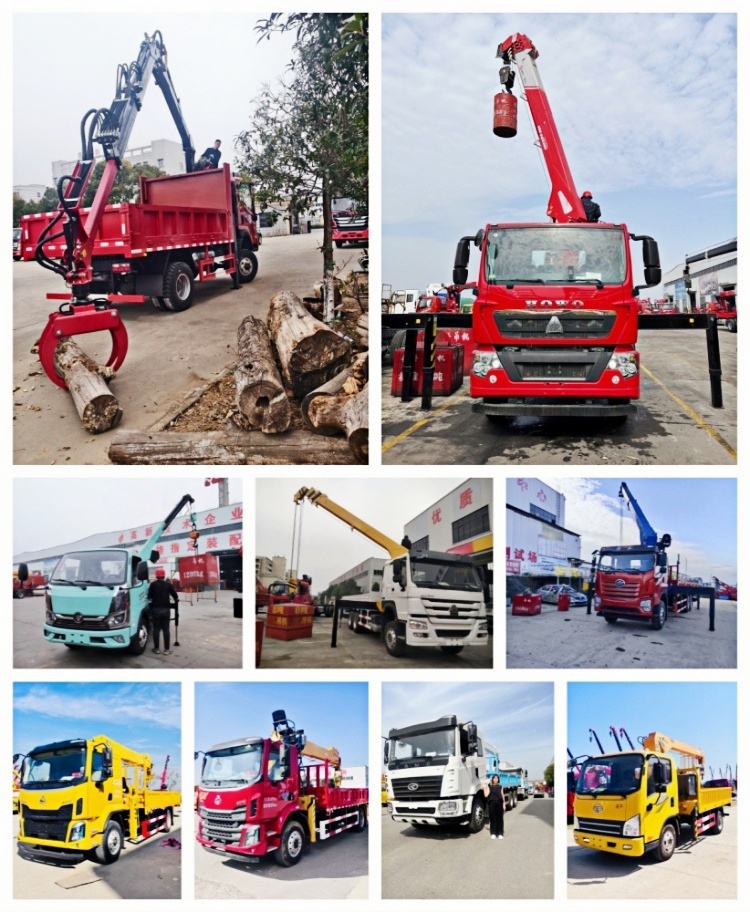

Truck-mounted cranes can be equipped with various grabbing attachments, such as wood grabs, hanging baskets, brick clamps and drilling tools to achieve multi-scenario operations.
