Vehicle technical parameters |
|
|
Product Name |

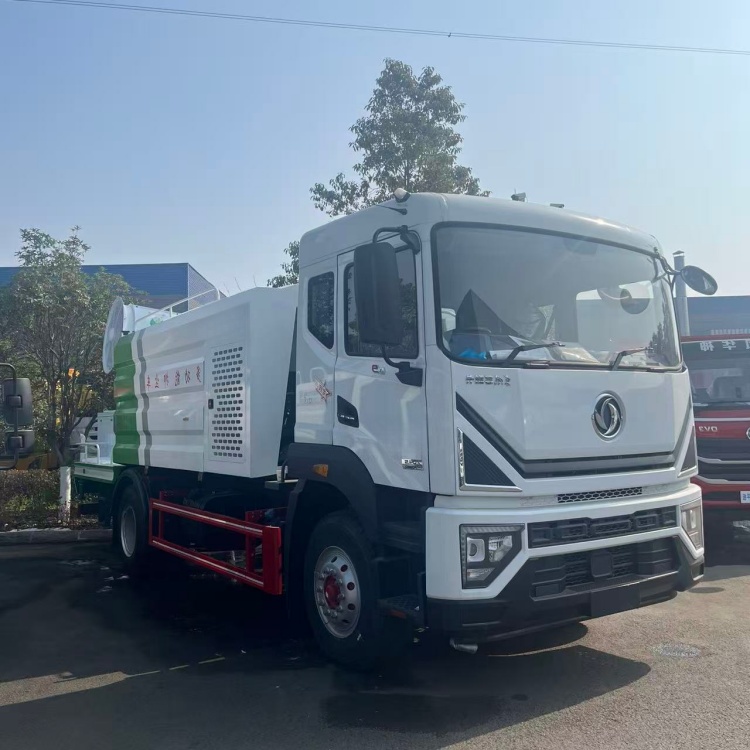

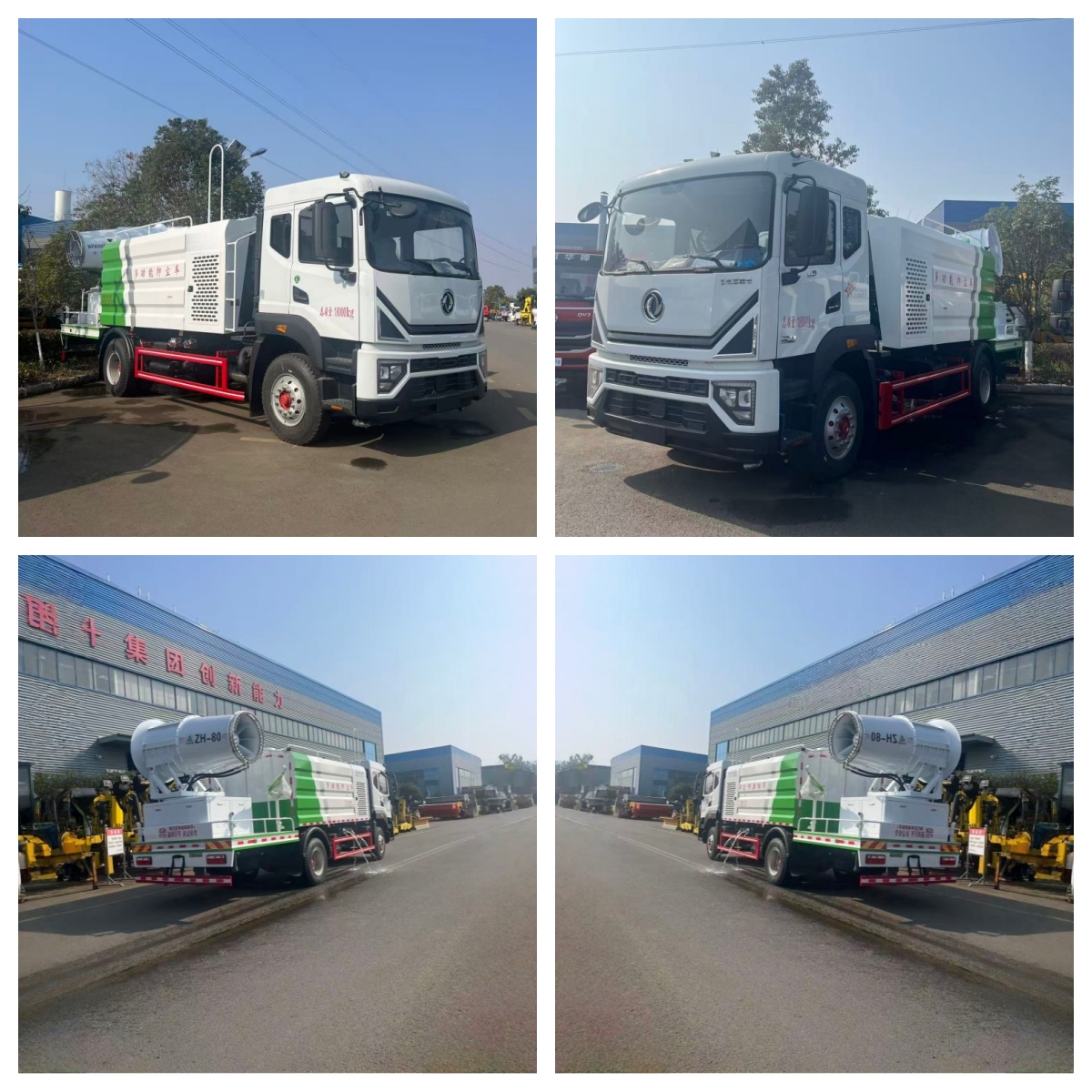

dust suppression truck |
|
Overall dimensions（mm） |
8600×2500×3500 |
|
Total mass（kg） |
18000 |
|
Curb weight（kg） |
6900/7500 |
|
Box volume (L) |
12000 |
|
Box material quality |
Q235 carbon steel |
|
Water Pump Pressure(MPa) |
1.5-2.0 MPa |
|
Chassis technical parameters |
|
|
Chassis brand |
DFL |
|
Fuel type |
diesel |
|
Spray flow rate |
80-120 L/min |
|
engine |
Cummins / Yuchai |
|
wheelbase（mm） |
4500 |
|
Water cannon range（m） |
60-100 |
|
displacement（L) |
6200 |
|
Tire specifications |
295/80R22.5 |
