Product Parameters
|
Truck Specification |
|
|
Product name |

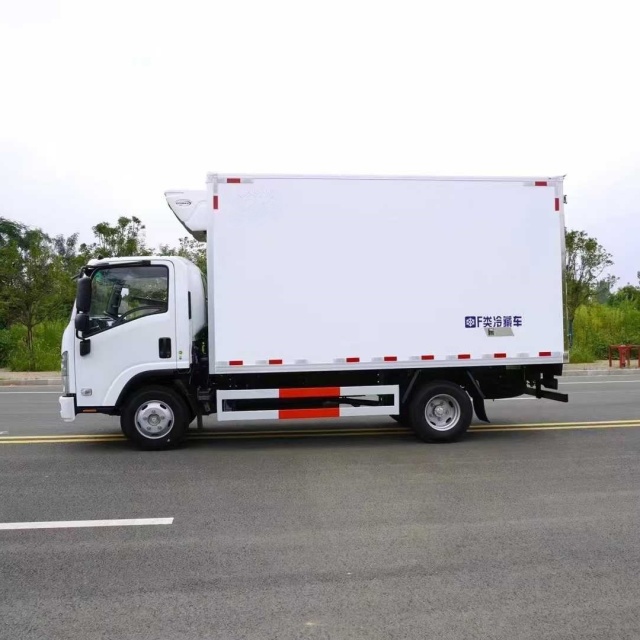

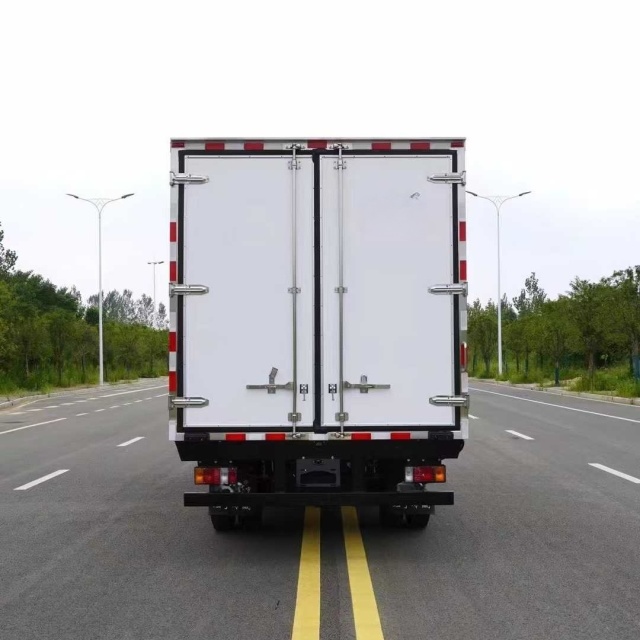

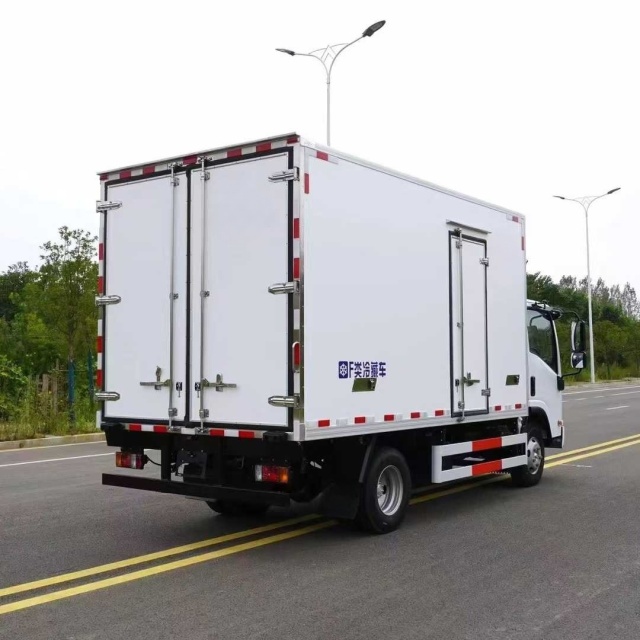

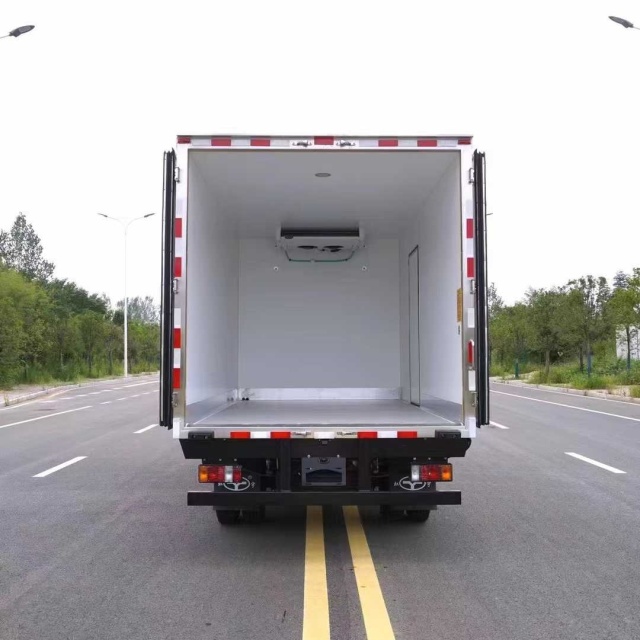

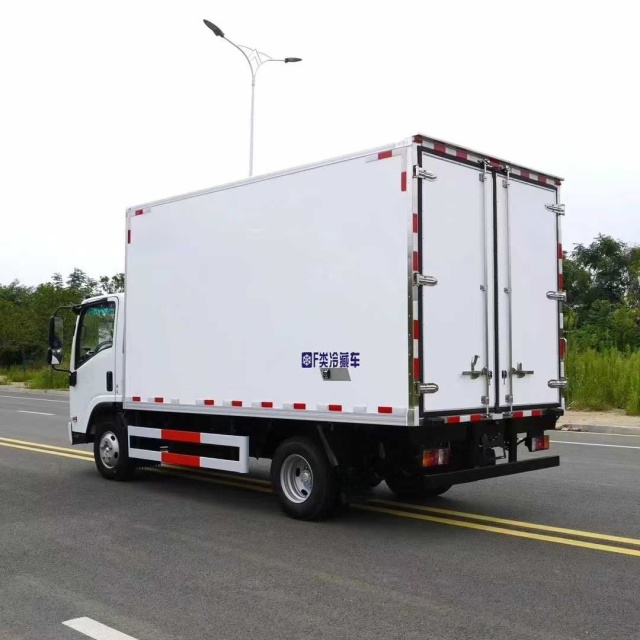

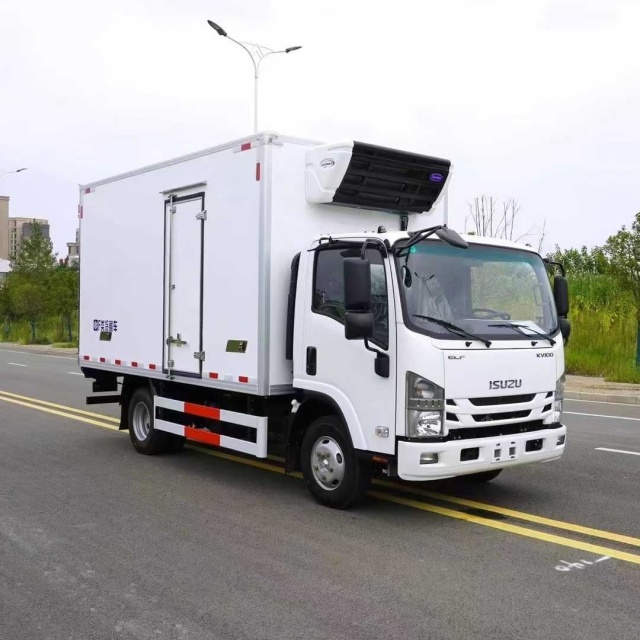

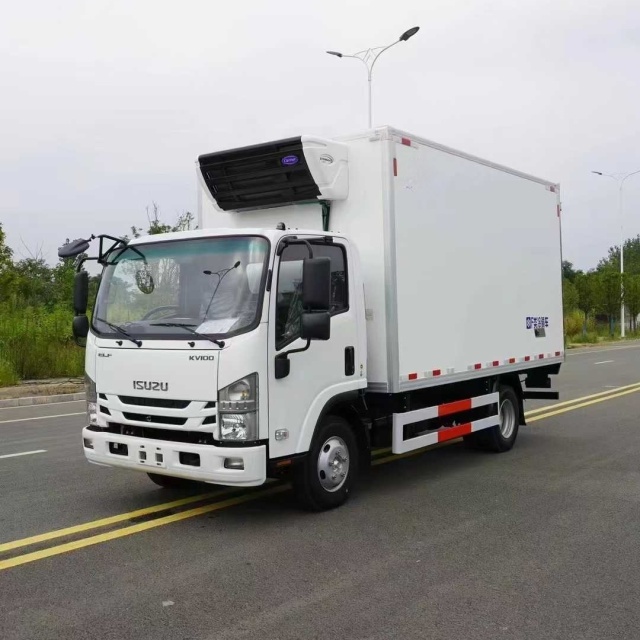

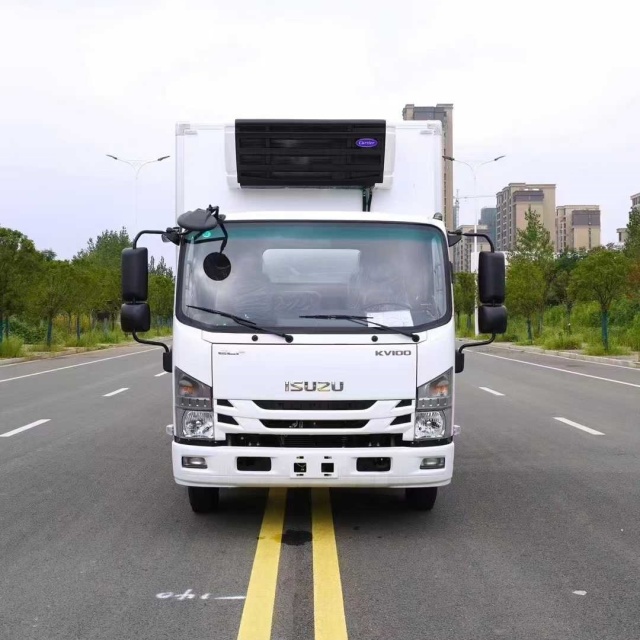

ISUZU KV100 Refrigerator truck |
|
Overall dimension(mm) |
5995*2260*3250 |
|
Drive type |
4*2 Left hand driving |
|
Gross weight(Kg) |
4495 |
|
Payload(Kg) |
1155 |
|
Curb weight(Kg) |
3290 |
|
Cab seats |
3 |
|
Wheelbase(mm) |
3360 |
|
Chassis |
|
|
Chassis model |
QL1043BUHAY |
|
Cab |
Single row, ABS, manual windows, fabric seats |
|
Emission standard |
Euro 3/4/5 |
|
Fuel type |
Diesel |
|
Tyre specification |
7.00R16 |
|
Engine model |
4KH1N6MD |
|
Power(hp) |
140 |
|
Transmission |
6gear |
|
Exhaust(ml) |
3000mL |
|
Upper-Body specification |
|
|
Material of van box |
In the middle of Polyurethenefoam, Inner and coating is glass fiber |
|
Thickness of van box (mm) |
80mm Polyurethene foam |
|
Model of Refrigeration unit |
China |
|
Van box dimension(mm) |
4050*2100*2100 |
|
Capacity of van (m³) |
18m³ |
|
Mini temperature in van (ºC) |
-18(suitable for transfer food ) |
|
Feature and Application |
|
|
The refrigerator truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, Polyurethane insulation van, refrigeration unit and temperature recorder. It is commonly used to transport the frozen food, dairy products, vegetable and fruit and vaccine medicine etc. For the special requirements of trucks,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots etc. |
|
